Phila Optics offers now design and production of broad variety of Digital Camera Lenses for various applications.
Typical applications for our lenses include, but are not limited to, the following:
  • Data recording
  • CCD imaging
  • Document scanning
  • Non-contact measurement
  • Image digitizing
  • X-ray imaging
  • High-speed photography
  • Pattern recognition
  • Guidance systems

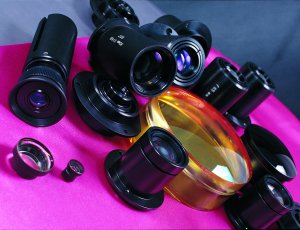

Camera Lenses Please, contact us with your specific requirements and we'll design and build a system just for you.

Currently, following lines of Camera Lenses being produced and available in any quantity:
High Resolution Digital Camera Lens
  Effective Focal Length – 38 mm
F# - 4.0 at Zero Vignieting
Optimum Reduction Ratio – 18
Image Diameter – 22 mm
Min Resolution – 70 lp/mm at 60% MTF
Relative Distortion – 1%
Number of Elements – 6
Finite Conjugate High Resolution Digital Camera Lens
  Effective Focal Length – 66 mm
F# - 5.0 at Zero Vignieting
Optimum Reduction Ratio – 9
Image Diameter – 43 mm
Min Resolution - 70 lp/mm at 60% MTF
Optimum Distance Object to Image – 29”(740 mm)
Relative Distortion – 1%
Number of Elements – 6 		Click to enlarge
Click to enlarge drawing

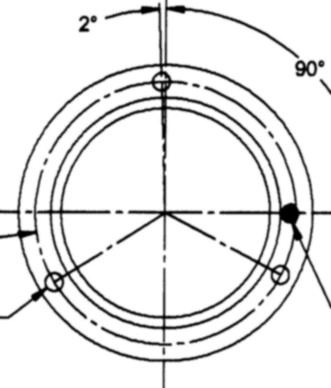

High Performance Large Format Digital Camera Lens
  Effective Focal Length – 85 mm
F# - 4.0 at Zero Vignieting
Optimum Reduction Ratio 14-30
Image Diameter – 43 mm
Min Resolution 70 lp/mm at 60% MTF
Relative Distortion – 2%
Number of Elements – 8 		Click to enlarge
Click to enlarge drawing
High Performance Large Format Digital Camera Lens
  Effective Focal Length – 135 mm
F# - 4.0 at Zero Vignieting
Optimum Reduction Ratio 10-20
Image Diameter – 43 mm
Min Resolution 70 lp/mm at 60% MTF
Relative Distortion – 2%
Number of Elements – 6 		Click to enlarge
Click to enlarge drawing

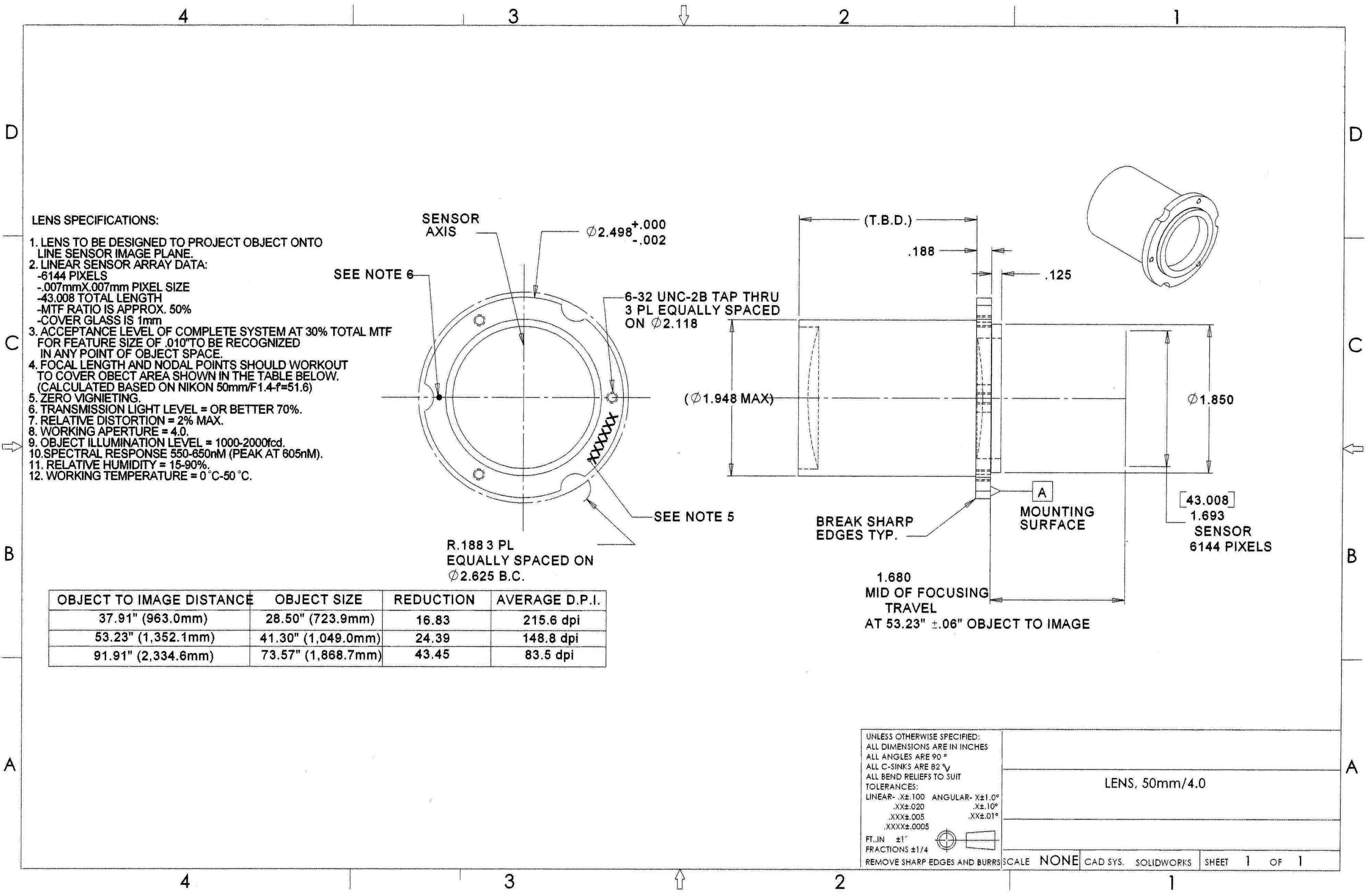

High Performance Large Format Digital Camera Lens
  Effective Focal Length – 50 mm
F# - 4.0 at Zero Vignieting
Optimum Reduction Ratio 15-45
Image Diameter – 43 mm
Min Resolution - 70 lp/mm at 60% MTF
Relative Distortion – 2%
Number of Elements – 7 		Click to enlarge
Click to enlarge drawing
