Production Equipment

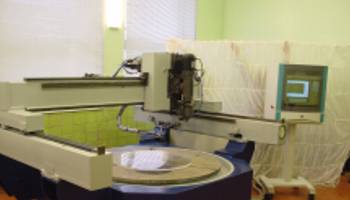

Automatic finishing machines with DNCU and PC series AD

Basic control systems of finishing complex AD

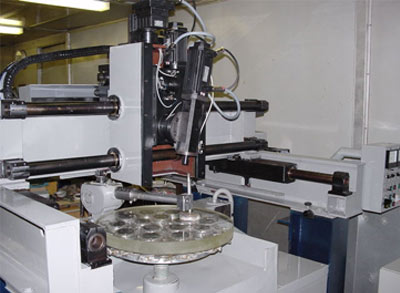

Automatic finishing machine AD-400
Finishing machine AD-250
 Automatic finishing machine AD-1000

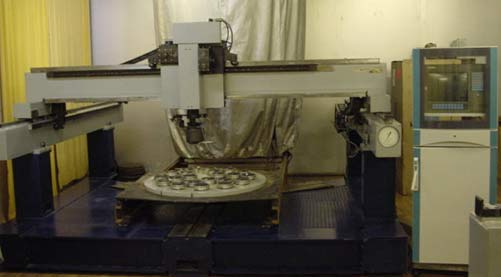

Automatic finishing machine AD-2000


Vacuum Coating Equipment

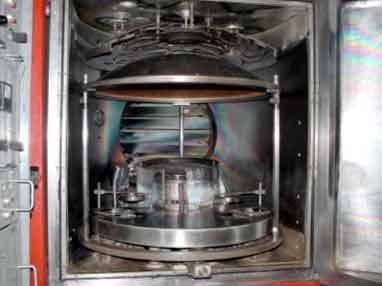

Vacuum unit VU-2M
Technical data:
  • Chamber pressure (ultimate vacuum): 6·10-4
  • Internal chamber diameter: 700 mm
  • Number of vaporizers
    • cathode-ray (ELI): 2
    • resistive (RI): 1
  • Maximum power of cathode-ray vaporizer: 6 kVt
  • Maximum power of resistive vaporizer: 4 kVt
  • Maximum allowable diameter of optical component: 500 mm
Ion ray fabrication module ILO-200
Technical data:
  • External aperture of ion beam: 200 mm
  • Maximum ion beam current density: 0.5 mA/sm2
  • Ion energy: 0.1 ... 1.5 keV
  • Irregularity of current density within external aperture: 5%
  • Divergence angle of ion ray: 5 ... 10°
Vacuum camera technical equipment
Tools - masks for vacuum formation of the
optical surfaces
Tool - mask for ion ray formation
